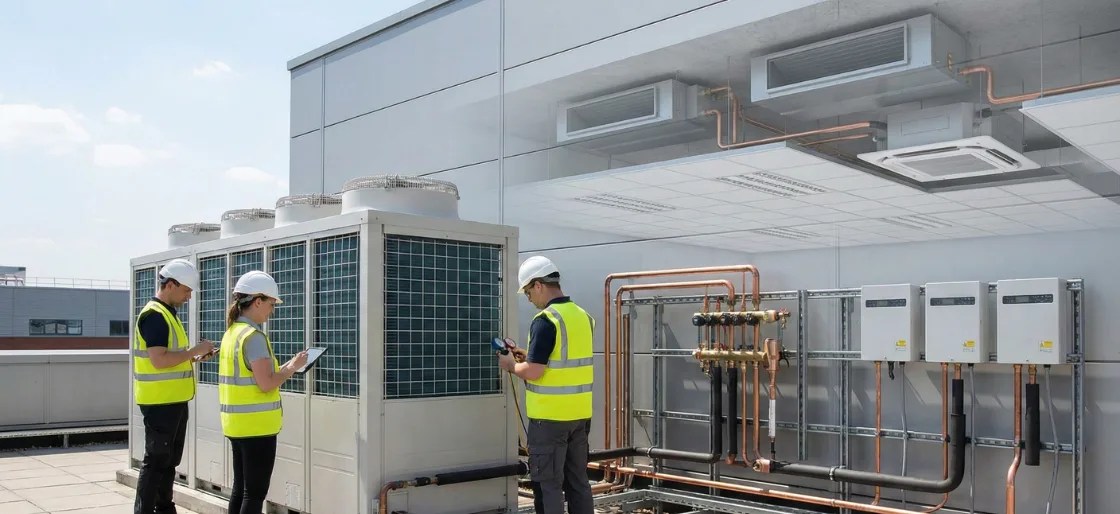

How Does a VRV System Works

The term VRV (Variable Refrigerant Volume), commonly known as VRF (Variable Refrigerant Flow), refers to a modern HVAC (Heating, Ventilation, and Air Conditioning) technology that delivers heating or cooling to multiple zones in a building via a network of refrigerant piping and intelligently controlled indoor units. The system continuously adjusts both refrigerant flow and compressor capacity to match real-time demand, offering efficient, flexible, and precise climate control across diverse spaces.

In this blog, we explore the technical workings, benefits, limitations, typical applications, and best practices, helping you understand whether a VRV/VRF installation is the right HVAC solution for your building or project.

What Is VRV / VRF: Basic Definition & Core Principle

At its heart, a VRV/VRF system is built on two primary concepts:

Variable refrigerant flow (volume): Refrigerant acts as the heat-transfer medium, and its flow is dynamically adjusted to meet the specific cooling or heating load of each zone.

Inverter-driven compressor + Electronic Expansion Valves (EEVs): Instead of simple ON/OFF operation, the outdoor compressor uses inverter technology to vary speed; simultaneously, EEVs regulate refrigerant flow to each indoor unit in precise measure.

This combination allows the system to deliver only the needed capacity, no overcooling or overheating, no wasted energy.

Thus, VRV/VRF stands apart from conventional fixed-capacity or ducted central systems, delivering zoned comfort with far greater efficiency and flexibility.

How a VRF HVAC System Works: Detailed Working Mechanism

Core Components

A typical VRV/VRF system includes:

• Outdoor unit(s) with inverter-driven, variable-speed compressor(s)
• Multiple indoor units (wall-mounted, ceiling-cassette, ducted, cassette, etc.), each serving a separate zone
• Refrigerant piping network + branch selectors/distribution headers to serve all indoor units from one or more outdoor units
• Electronic Expansion Valves (EEVs) for precise refrigerant metering to each indoor unit
• Central or zone-level controllers / BMS integration for intelligent load sensing and control

Operational Flow (Cooling / Heating)

• Zone demand detection: Each indoor unit senses its zone’s temperature (or setpoint) and communicates demand to the system controller.
• Compressor modulation: The inverter compressor modulates its speed according to cumulative demand from all zones, from minimal load to full capacity, as needed.
• Refrigerant flow control: EEVs open/close to precisely supply refrigerant to each indoor unit, no waste, no over-delivery.
• Heat exchange & zone conditioning: Indoor units, based on refrigerant flow, condition air (cooling or heating) for their zone; simultaneously, the refrigerant cycle continues via piping back to the outdoor unit or branch selectors.
• Heat recovery (if configured): In heat-recovery VRF variants, the system can simultaneously cool some zones and heat others, transferring heat internally for maximum efficiency.

Because the system continuously adapts, at both refrigerant flow and compressor capacity levels, VRV delivers stable comfort, reduced energy use, and zoning flexibility.

Functions & Advantages of VRV / VRF Systems

• Individual Zoned Control: Each indoor unit is independently controllable, ideal for multi-room, multi-function buildings (offices, hotels, apartments, malls).
• Energy Efficiency & Cost Saving: By modulating capacity and avoiding full-capacity run cycles, VRF systems reduce energy consumption significantly compared to conventional HVAC or fixed-speed split ACs.
• Quiet & Compact Operation: Without bulky ductwork or large air handlers, indoor units remain quiet; outdoor unit noise is kept outside, a big plus for offices, hotels, and residential buildings.
• Flexible / Space-Saving Installation: Compact outdoor units, small-diameter refrigerant piping, and a variety of indoor unit types make VRF great for retrofit projects or buildings with architectural constraints.
• Simultaneous Heating & Cooling (Heat-Recovery VRF): In buildings with mixed usage (some zones needing cooling, others heating), VRF heat recovery maximises comfort and efficiency.
• Scalability & Modularity: Easy to extend, additional indoor units can be hooked up to existing outdoor equipment (subject to system design); ideal for phased expansions or multi-zone needs.
  Lightning Mechanical LLC

These advantages make VRF/VRV systems a preferred choice among modern commercial and large residential developments, especially where energy efficiency, comfort control, and architectural flexibility matter.

Limitations & Considerations: Where VRF Systems Are Not a Silver Bullet

While VRV/VRF delivers many benefits, there are trade-offs and constraints you should be aware of:

• Higher upfront cost & design/installation complexity: VRF systems require careful load calculations, piping design, skilled installation, and commissioning.
• Potential refrigerant management issues: Because refrigerant circulates throughout the building, proper installation, leak detection, and maintenance practices are essential.
• Less effective for small single-room use: For small spaces or single-room cooling, traditional split ACs may remain more cost-effective.
• Need for regular maintenance and periodic servicing: Though generally reliable, VRF systems have multiple indoor units, valves, and controls; neglect can degrade performance over time.
• Requirement for professional installation/commissioning: Without correct design, piping, refrigerant charge, and controls, the system may underperform, fail to deliver promised efficiency, or even cause comfort issues.

Therefore, while VRF offers a superior long-term solution, its success depends heavily on skilled planning, execution, and maintenance.

Read More about: What is the VRV Air Conditioning System

Key Pointers & Best Practices for VRF Installation & Operation

To ensure optimal performance and longevity of a VRV/VRF system:

• Use accurate load calculations per zone, avoid oversizing or undersizing.

• Plan refrigerant pipe layout carefully, respecting manufacturer-specified pipe lengths and configuration.

• Ensure skilled installation and commissioning,  especially correct refrigerant charge, vacuuming, pressure testing, EEV calibration.

• Provide adequate ventilation / fresh-air / primary-air supply, especially in buildings with occupancy and air-quality requirements (VRF handles only refrigerant-based conditioning, not fresh-air supply).

• Schedule regular maintenance: filter cleaning, refrigerant leak checks, EEV inspection, periodic servicing of compressors and indoor units.

• For hybrid or integrated systems, ensure an appropriate control strategy to avoid efficiency loss or performance conflict.

Mistakes to Avoid When Using VRF

• Oversizing outdoor units “just in case”, leads to inefficiency at part load.

• Poor refrigerant piping layout or excessive pipe length, affects refrigerant flow, oil return, and controls.

• Skipping commissioning or inadequate testing leads to system underperformance or frequent faults.

• Not providing adequate fresh air/ventilation, and reliance solely on VRF for all HVAC needs, can compromise indoor air quality.

• Choosing VRF for very small, simple, single-room applications, such use does not justify the cost/complexity.

Does a VRF System Require Daily Technician Attendance? What About Installation: Does It Demand a Professional?

• Daily technician visits?
  No. Once properly installed and commissioned, a VRF system runs with minimal intervention. Periodic preventive maintenance, filter changes, refrigerant checks, and coil cleaning are normally sufficient. Regular maintenance (quarterly/semiannual) is recommended rather than daily attendance.

• Is the installation done by a professional?
  Yes, because VRF systems need precise refrigerant charge, correct piping layout, pressure testing, and calibrated controls. Amateur or inexperienced installation often leads to sub-optimal performance or even system failure.

Hence, professional design, installation, and commissioning are not optional; they are critical.

Conclusion

When specified, designed, installed, and maintained correctly, a VRV/VRF system transforms building climate control: offering energy efficiency, precise zoned comfort, flexibility, and scalability. For projects where comfort, economy, and future-proofing matter, VRF stands out, provided you partner with experienced HVAC professionals.
